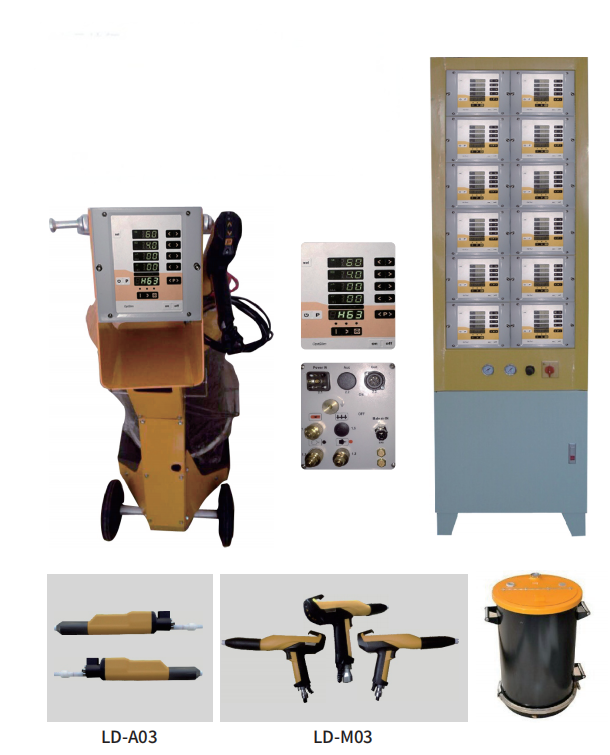

High-end Surface Spraying Machines with Universal Spray Gun Series & Professional Paint System Equipment

For W-101: In its expression form, P stands for pressure-fed type, G stands for gravity-fed type, and S stands for suction-fed type. For VV-101, the spraying distance is 200mm, the coating viscosity is 20±1 second/NK-2, and for the pressure-fed type, the coating pressure is 0.8kg/cm²

W-101R Pill blowing gun series

Model	Nozzle Diameter Φ m m	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Spraying width mm	Weight G
W-101-RO5	0.5	0.29(3.0)	120	270	40	320
W-101-R08	0.8		150		60
W-101-R10	1.0		200		75
W-101-R13	1.3	0.24(2.5)	200	220	90
W-101-R15	1.5		250		105
W-101-R18	1.8		240	150	95

For W-101R: In its expression form, R stands for spray gun with a tip guard. The spraying distance is 200mm, the coating viscosity is 20±1 second/NK-2, the coating pressure for the pressure-fed type is 0.8kg/cm², and the coating inlet and air inlet are 1/4PF/NPF.

W-101 Highatomizingspray gun series

Function and characteristics
It adopts white iron nozzle,which is not easy to deform,highprecision machining and high concentricity.
The oil quantity is fast, the spraying efficiency is greatly improoved, the atomization is fine and uniform, the effect is excellent, the spraying efficiency is high,andthespeedisfast.
Mainly used for automotive repair, furniture,home appliances, rmetal and other spraying, the scope of application is more extensive.

Model	Nozzle Diameter Φ mm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Weight G
W-101-PO8	0.8	2.5-3.0(0.24-0.29)	170	270	325
W-101-P10	1.0		220	220
W-101-P13	1.3		220	200
W-101-P15	1.5		270	220
W-101-P18	1.8		250	170

LD-W101 Sprinkle spray gun series

Function and characteristics
The atomization effect can be sprayed with fine dots and thick dots.

Model	Coating supply method	Nozzle Diameter Φ mm	Coating output ML/min	L/min	pray Air Pressur Mpa(kgf/cm²)	Weight G
LD-W101	Pressure feed	0.8	150	80	0.2(2.0)	295

LD-71 Chaos spray gun series

Function and characteristics

It can spray a pattern of loose, thin,fine dots.

The three kinds of gun caps can be freely replaced and sprayed withdifferent chaotic patterns.

Model	Coating supply method	Nozzle Diameter Φ mm	Coating output ML/min	L/min	Spray Air Pressure Mpa(kgf/cm²)	Weight G
LD-71	Pressure feed	0.7	80	80	1.0-2.5 (0.1-0.25)	1012
		2	140	140

R2 Repair spraygun series (round)

Model	Nozzle Diameter Φ mm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Spraying width mm	Weight G
R2-R	0.5	1.8-2.5 (0.18-0.24)	20	35	totally blown over	245
R2-R	0.8		40	45

R2 Repair spraygunseries (sector)

Function and characteristics
·The nozzle and thimble are made of high-grade stainless steel and are suitable for

·spraying waterborne coatings.

·The nozzle can be removed and cleaned,and the atomization is even and delicate.
Suitable for spraying on small hardware,plastic molds,art crafts,woodwork,leather,toys,automobiles,etc.

Model	Nozzle Diameter Φ mm	Spray Air Pressure Mpa(kgf/cm²)	Coatingoutput ML/min	L/min	Spraying width mm	Weight G
R2	0.3	1.8-2.5 (0.18-0.24)	6	30	50	260
R2	0.5		20	35	50
R2	0.8		60	40	80
R2	1.0		80	45	100

LD-77 Polychrome spray gun series

Function and characteristics
·Water-in-water multi-color spraying gun for spraying construction of inner and outer walls of spraying plant
·Suitable for metal paint,multi-color paint,stone paint,granite paint, fluorocarbon paint,etc.

Model	Nozzle Diameter Φ mm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Weight G
LD-77	1.5	0.3(3.0)	400	560	530
	2.0		440	560
	2.5		480	560
	3.0		520	560

LD-WA200 Polychrome spray gun series

Function and characteristics
·Water-in-water multi-color spraying gun for spraying construction of inner and outer walls of spraying plant
·Suitable for metal paint,multi-color paint,stone paint,granite paint, fluorocarbon paint,etc.

Model	Nozzle Diameter Φ mm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Weight G
	2.5		480	450
LD-WA200	3.0	0.3(3.0)	520	550	500

LD-1 Release agent spray gun series

Function and characteristics
·Suitable for water and oil release agent spray,water transfer activator spray.

·Small size,light weight,easy to use and easy to operate.

Model	Nozzle Diameter Φ mm	Spray Air Pressure Mpa(kgf/cm²)	Coatingoutput ML/min	L/min	Spraying width mm	Weight G
LD-1	0.3	2.0(0.2)	Pressure feed	35	5	255
	0.5			40	20
	0.8			45	40

Gesture pen gun

Function and characteristics
·Small size,easy to operate,suitable for

·line surface spraying.

Suitable for automotive scratch repair,beauty and crafts industries.

WA-101/200 Automatic spray gun series

Function and characteristics
·The traditional gun body design,the paint channel is made of stainless steel,the nozzle and thimble are made of high-grade stainless steel,high hardness,wear resistance and durability.
·Applicable coating range is wide,suitable for combination of production line,automatic spraying machine, reciprocating spraying machine and painting robot.
·Applicable to pharmaceutical coatings,glass,furniture,home appliances,aviation,shipbuilding and other industries.

Model	Nozzle Diameter mm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Spraying width mm	Weight G
WA-101-PO8	0.8	0.29(2.9)	150	270	190	440
WA-101-P10	1.0		200	270	220
WA-101-P13	1.3		250	260	230
WA-101-P15	1.5		270	260	245
WA-101-P18	1.8		310	190	240
WA-200-P12	1.2		500	530	400	470
WA-200-P15	1.5		270	330	340
WA-200-P20	2.0		400	360	320
WA-200-P25	2.5		500	360	330
WA-200-P30	3.0	0.55(5.5)	650	550	370

LD-WA101 Chaos spray gun series

Coating supply method:Pressure Feed

Paint nozzle caliber:0.8mm

Air usage:80 /min

Spray amount of paint:80ml/min

Weight:522g

WA-101R Series

Function and characteristics
·The traditional gun body design,the paint channel is made of stainless steel,the nozzle and thimble are made of high-grade stainless steel,high hardness,wear resistance and durability.
·Applicable coating range is wide,suitable for combination of production line,automatic spraying machine,reciprocating spraying machine andpainting robot.

Model	Nozzle Diameter φmm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Weight G
WA-101-R05	0.5	0.29(3.0)	60	40	440
WA-101-R10	1.0		250	50
WA-101-R13	1.3		360	55

LD-5 Simple automatic spray gun

Function and characteristics
·Small size,light weight,simple operation,suitable for medicine,food, textile,plasticrubber,printing,vacuum blister,steel plate cooling,steelplate lubrication and other industries.
·Available in a variety of nozzle sizes.The nozzle and thimble are made of high-grade stainless steel for waterborne coatings.

Model	Nozzle Diameter mm	Spray Air Pressure Mpa(kgf/cm²)	Spray Style	L/min	Spraying width mm	Weight G
LD-5	0.5	0.3(3.0)	扇形及圆形 Fan-shaped and round shaped	60	200	280
	1.0
	1.3			80	250
	2.0

LD-6 Simple automatic spray gun

Function and characteristics
·Small size,light weight,simple operation,suitable for medicine,food, textile,plastic,rubber,printing,vacuum blister,steel plate cooling,steelplate lubrication and other industries.
·Available in a variety of nozzle sizes.The nozzle and thimble are made of high-grade stainless steel for waterborne coatings.

Model	Nozzle Diameter φmm	Spray Air Pressure Mpa(kgf/cm²)	Spray Style	L/min	Spraying width mm	Weight G
LD-6	0.5	0.3(3.0)	扇形及圆形 Fan-shapedand round shaped	100	350	300
	1.0
	1.3			140	400
	2.0

LD-100 Simple total spray gun series

Function and characteristics
The gun body is light,small in size and easy to operate.
Suitable for spraying water-based paint,nozzle and thimble are made of stainless steel.

Applicable to the pharmaceutical,food,textile,plastics andother industries.

Model	Coating supply method	Nozzle Diameter m m	Coating output ML/min	L/min	Spray Air Pressure Mpa(kgf/cm²)	Weight G
LD100-P08		0.8	150
LD100-P10	Pressure feed	1.0	200	270	0.3(3.0)	248
LD100-P13		1.3	250	260	0.25(2.5)
LD100-P15		1.5	270
LD100-P18		1.8	310	190

LD-101R Pillblowing automatic spray gun series

Function and characteristics
·Smallparts are sprayed to reduce the trouble of shielding and reduce the contamination of the fixture.
·Porous cover(air cover)specification cover,spray air independent control specification liquid recyclable specifications.

Model	Nozzle Diameter mm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Spraying width mm	Weight G
LD-101R-P05	0.5	0.26	130	350	full-face blowing	350
LD-101R-P08	0.8		150

WRA-101/200 Robot reciprocating machine special automatic spray gun series

Function and characteristics
·Intake adjustment and spray width adjustmentpaint discharge volume adjustment,set outside themachine,remote control,independent control,reduce operational troubles,suitable for a largenumber of painting applications,can be installed onthe robot arm or automated coating machineequipment.
·Inlet pressure can be adjusted freely according to your needs(2.0-3.5bar),reducing paint reboundand saving paint.
·Applicable to computer casings,mobile phone casings,cosmetic casings,furniture,homeappliances,medicine,food,textile,glass,plastic,rubber,printing,building materials and hardware.

Model	Nozzle Diameter m m	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Spraying width mm	Weight G
WRA-101	0.5	0.29(3.0)	130	270	180	285
	0.8		150		190
	1.0		200		220
	1.3	0.24(2.5)	250	260	230
	1.5		270	260	245
	1.8		310	190	240
WRA-200	1.2	0.29(3.0)	530	530	400	320
	1.5		330	330	340
	1.8		330	330	340
	2.0		360	360	320

LD-618 Low pressure environmental protection spray gun series

Function and characteristics
·Low pressure and high atomization spraying gun can reduce the spatter of paint and improve the adhesion rate ofpaint

·Compared with traditional air sprayinggun,it can save 20%-30%of paint and air consumption.
Coatings can be circulated in the gun body to prevent the deposition of coatings and not easy to plugthe gun.
·Double atomization adiustingknob can not onlv adiust thewidth of atomization,but also adiust the thickness of
atomization.The atomization effect is more delicate and uniform.

Model	Nozzle Diameter mm	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Spraying width mm	Weight G
	0.8		120	260	280
LD-618	1.1	2.0-3.0 (0.2-0.29)	150	270	320	525
	1.3		160	280	380
	1.5		200	285	420
	1.8		250	295	450
	2.0		300	300	470

LD-5200 Low pressure environmental protection spray gun series

Function and characteristics
·Quick release split structure foreasy disassembly,no tools required for disassembly,no need to reposition.

·Low-pressure high-atomization spray gun can reduce paint splash and improve paint adhesion rate,saving 20%-
30%paint and air consumption compared with traditional airspray gun.
·Itis set outside the machine and can be operated remotely,independently controlled to reduce the trouble of
operation.It can be installed on the robot arm orautomatically coating the machine equipment.

Model	Nozzl i meter	Spray Air Pressure Mpa(kgf/cm²)	Coating output ML/min	L/min	Spraying width mm	Weight G
LD-5200	0.7	2.0-3.0 (0.2-0.29)	400	280	210	389
	1.1		400		220
	1.4		500		230

LD-5800 Robotic robot special automatic spray gun series

Function and characteristics
·Quick release split structure foreasy disassembly and maintenance.

·The spray gun nozzles are made of high-grade stainlesssteel,high hardness,wear resistance and durability,which greatly prolongs the service life.

Model	Nozzl i meter	Coating supply method	Coating pipe size mm	L/min	Spraying width mm	Weight G
LD-5800	0.7	Pressure feed	6x4	280	22	370
	1.1
	1.4

Inner wall angle long rod spray gun series

Function and characteristics
·Suitable forspraying the innerwall of the pipe,the inner wall of the bottle,and sprayingon the side.

·The spray cap connecting pipe and paint pipe are made of stainless steel,which are not bent,deformed,wear-resistant and corrosion

Model	Nozzle Diameter mm	Spray Air Pressure Mpa(kgf/cm²)	Paint nozzle diameter φmm	Tube length mm	Atomization angle o	Weight G
W0609 WA 0609			6	90
W-0915 WA-0915	(0.60.81.01.5)	3.0(0.29)	9	150	14-19	505-1100
W-1218 WA-1218		3.0(0.29)	12	180
W-1230 WA-1230			12	300
W-1250 WA-1250			12	500

Inner wall angle long rod spray gun series

Function and characteristics
Suitable forsprayng the innerwll of the pipe,theinner wall of the bottle,andspraying on the side.

The spray cap connecting pipe andpaint pipe are made of stainlesssteel,which arenot bent,deformed,wear-resistant and corrosion

Model	Nozzle Diameter φmm	Spray Air Pressure Mpa(kgf/cm²)	Paint nozzle diameter φmm	Tube length	Atomization angle o	Weight G
W0609 WA0609		3 0(0 29)	6	90
W-0915 WA-0915	(0.60.81.01.5)	. .	9	150	14-19	505-1100
W-1218 WA-1218		3.0(0.29)	12	180
W-1230 WA-1230			12	300
W-1250 WA-1250			12	500

Inner wall without dead angle spray gun series

Function and characteristics
Long tube spray gun is suitable for long-distance depth and height sprayng operations.The nozzle of thespraygun is specially designed to have strong coating adhesion and fast spraying speed.
The spray gqun is available inavarietyof dferent length desians and special diameterdesigns,givingyouawiderange of options.
The cap connecting pipe and coating pipe are made of stainless steel,whichis not bent,deformed,wear-resistantand corrosion-resistant.
The spray cap,nozzle and thimble are made ofhigh-grade stainless steel,suitable forspraying water-basedpaint.

Model	Nozzle Diameter φmm	Spray Air Pressure Mpa(kgf/cm²)	Paint nozzle diameter φmm	Tubelength mm	Atomization angle O	Weight G
W-3615WA-3615			6	150
W-3620 WA-3620	(0.60.81.01.5)	2.5-3.0 (0.24-0.29)	12	200	360°	505-1100
W-3615WA-3615				150
W-3620 WA-3620				200
W-3630 WA-3630				300
W-3640 WA-3640				400
W-3650 WA-3650				500

Medium pressure high atomization

Function and characteristicsThe traditional gun body design,the paint channel is made of stainless steel,the nozzle and thimble are made of high-grade stainless steel,high hardness,wear resistance and durability.
Applicable coating range is wide,suitable for combination of production line,automatic spraying machine, reciprocating spraying machine and painting robot.
Applicable to pharmaceutical coatings,glass,furniture,home appliances,aviation,shipbuilding and other industries.

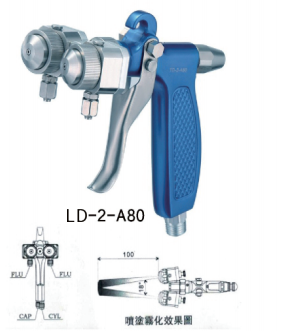

Nano-spraying double-head spray gun

Function and characteristics
All the tips and coating channels are made of high-grade stainless steel, which is suitable for allkinds of corrosive spraying and durable
Ability to individually adjust the amount of paint sprayed,suitable for two-component solvent and two-color spray.
Nano-plating suitable for the surface of various products,to achieve the transformation from traditional plating to nano-plating.

Aluminum pump series

Aluminum Alloy Pump Series	A-10	A-15	A-20	A-26	A-31
Coating Interface Size	(3/8inch)	(3/8inch)	(1/2inch)	(3/4inch)	(1inch)
Maximum Working Pressure	7 bar	7 bar	7 bar	7 bar	7 bar
Liquid Inlet & Outlet Size	3/8"NPT	3/8”NPT	1/2"NPT	3/4"NPT	1 "NPT
Gas Inlet Size	L/4”NPT	1/4"NPT	1/4"NPT	1/4"NPT	3/8"NPT
Maximum Flow Rate	13L/Min	18/Min	42L/Min	60L/Min	180L/Min
Maximum Pump Idle Speed	300cpm	300cpm	400cpm	400cpm	400cpm
Per Cycle Volume	0.06L	0.06L	0.15L	0.15L	0.45L
Maximum Gas Consumption	150NL/Min	150NL/Min	350NL/Min	380NL/Min	960NL/Min
Maximum Particle Diameter	2mm	2mm	3mm	3mm	6mm
Suction Lift	6.4m (Wet Condition), 3.7k	6.4m(Wet Condition)3.7k	6.4m(Wet Condition)3.7k	6.4m(Wet Condition)3.7k	6.4m(Wet Condition)3.7k
Net Weight of Main Body	7KG	8KG	9KG	9KG	9KG
Packing	460*350*440	535*400*250	535*400*250	535*400*250	535*400*250

Features:
Diaphragmtype paint regulatorvalve,can realize the film thickness uniformity,to ensure that the coating quality,sothat the paint pressure,the amount of the amount of the spit remainedstable.
Wetted Parts:
316 stainless steel,tungsten carbide(with nickel binder),acetal and PTFE

Material	304 Stainless Steel
MAX.WPR	35Mpa
Fluid Input Size	G3/8"NPT
Fluid Export Size	3-G1/4"NPT
Filter(M)	60/100/150/200/30
Weigh	1.2kg
(mm) Carton Box Size(mm)	240x50x75

Model	Inlet Max	Out Max	Fluid Input Size	Fluid Export Size	Max.passage Amount	Pressure Ratio	Weight	(mm) Carton Box Size
LD-JT	/	2.5Mpa	G1/4"NPT	G1/4"NPT	2L/Min	1:1	0.5kg	95*80*65
LD-CT-5B	/	2.5Mpa	G1/4"NPT	G1/4"NPT	3L/Min	4:1	0.4kg	195*110*110
LD-BYF	2.1Mpa	1.24Mpa	G3/8"NPT	G3/8"NPT	7.6L/Min	/	1.6kg	105*65*190

Liquid outlet size	3/8NPT		Liquid outlet size	1/4NPT
Liquid inlet size	3/8NPT		Liquid inlet size	3/8NPT
Maximum pressure	17.24bar(250psi)		Maximum pressure	10.0bar(145psi)
Voltage regulation range	0.35-6.9bar(5-100psi)		Voltage regulation range	0.35-5.9bar(5-85psi)
Maximum regulated fow	13.4L/min		Maximum regulated fow	2L/min
Maximum liquid viscosity	1000cps		Maximum liquid viscosity	1000cps
Regulation mode	manual adjustment		Regulation mode	manual adjustment
Product material	316 Stainless Steel		Product material	aluminum alloy
weight	1.6kg		weight	1.2kg

Liquid outlet size	1/4NPT		Liquid outlet size	1/4NPT
Liquid inlet size	3/8NPT		Liquid inlet size	3/8NPT
Maximum pressure	10.0bar(145psi)		Maximum pressure	10.0bar(145psi)
Voltage regulation range	0.35-5.9bar(5-85psi)		Voltage regulation range	0.35-5.9bar(5-85psi)
Maximum regulated fow	3L/min		Maximum regulated fow	3L/min
Maximum liquid viscosity	1000cps		Maximum liquid viscosity	1000cps
Regulation mode	manual adjustment		Regulation mode	manual adjustment
Product material	316 Stainless Steel		Product material	aluminum alloy
weight	1.6kg		weight	1.2kg

Viscosity cup

Paint container

Mixer

Pneumatic Sprayer & Tools

A pneumatic spray gun is a compressed-air-powered coating device widely used for applying various coatings, paints, varnishes, and liquid materials. Its key advantages include: fire-free operation, no heat generation, zero safety risks, high efficiency, uniform spray performance, and broad applicability across multiple industries.

Air powered paint equipment and tools

Powered by compressed air, this system ensures stable operation with minimal failure rates and precise pressure control, delivering uniform coating quality. A single unit supports simultaneous spraying from multiple guns. The mechanical air valve design eliminates open flames, prevents overheating, and removes safety hazards. Equipped with advanced noise reduction technology, it operates in a quieter environment. When the spray gun stops, the machine automatically halts, significantly extending its service life.

Model:	LD6C	LD9CA	LD6528K
Pressure Ratio:	65:1	32:1	65:1
No-Load Displacement(L/min):	25	51	28
Inlet Pressure(Mpa):	0.3-0.6	0.3-0.6	0.3-0.6
Air Consumption(L/min):	300-1500	300~1500	300~1500
Dimensions (cm):	50x54x74	50x54x92	50x54x96
Net Weight/Gross Weight(KGS):	46/68	58/80	61/83

Industrial-grade stainless steel pump bodies with ultra-low maintenance costs. Featuring integrated manufacturing processes and imported raw materials, these pumps boast long stroke, high displacement, and low directional switching frequency, effectively reducing wear and extending machine lifespan.

Energy-efficient and explosion-proof designs utilize mechanical air directional switching without open flames, heat generation, or safety hazards. The innovative silencer ensures quieter operation.

The adjustable pressure system in the oil-water separation mechanism precisely controls pressure ratios for optimal separation. During spraying, the machine automatically stops when the spray gun ceases operation, significantly enhancing durability.

With massive air discharge capacity, the compressed air system delivers stable, reliable performance with minimal pressure fluctuations, ensuring uniform coating quality.

Model:	LD-2539	LD-2549
Pressure Ratio:	39:1	49:1
No-Load Displacement(L/min):	35	33
Inlet Pressure(Mpa):	0.3-0.6	0.3-0.6
Air Consumption(L/min):	100-1000	100-1000
Dimensions (cm):	52x58x96	52x58x96
Net Weight/Gross Weight(KGS):	70	65

The imported 304 stainless steel pump body resists wear, offering a longer service life than domestic pumps made of ordinary materials. Industrial pumps feature extended stroke, high displacement, and low directional change frequency, reducing wear and extending equipment lifespan while minimizing maintenance cycles. Perfect for factory-based fixed-point construction. Powered by safe, reliable compressed air, these pumps deliver stable performance with minimal failure rates and low-pressure pulsation. Their uniform coating ensures superior quality, while a single unit supports multiple spray guns simultaneously.

The mechanical control system combines durability with efficiency, making it an ideal partner for timely task completion. Powerful performance guarantees strong and even spray coverage. Featuring mechanical pneumatic directional switching, this system eliminates open flames, heat generation, and safety hazards. The mechanical directional motor never freezes, automatically stopping when spraying ceases.

Model:	LD451	LD631	LD681	PT801
Pressure Ratio:	45:1	63:1	68:1	80:1
No-Load Displacement(L/min):	15	15.6	14.5	13.5
Inlet Pressure(Mpa):	315	441	476	560
Air Consumption(L/min):	250cc	220cc	180cc	145cc
Dimensions (cm):	76x72x140	76x72x140	76x72x140	76x72x140
Net Weight/Gross Weight(KGS):	123/138	123/138	123/135	117/132

The LD-3 Pipeline Interior Coating Sprayer

It is specifically engineered for internal wall coating applications. Its fan-shaped spray pattern ensures versatile performance, compatible with most high-viscosity coatings.

Designed for high-efficiency operation, this equipment enables rapid coating of large-diameter and long-distance pipelines. The automated control system automatically adjusts spray speed, pressure, and coating thickness.

Featuring durable components: Adjustable handwheel ensures precise operation with user-friendly adjustment. High-quality stainless steel bracket provides robust support and durability.

High-pressure hose made of thickened PVC rubber delivers flexibility and wear resistance to meet diverse requirements.

Model : LD-3
Type : High-Pressure Gun
Warranty : 1 year
Diameter of Coated Pipe: 300-1300mm/300-1800mm
Rotational Speed of Spray Nozzle:10-100(r/min)
Dimension (cm):	97X52X53cm
Weight (KGS):	35kg
The LD-3 pipeline inner wall sprayer can be equipped with an extension rod, and its maximum spraying range can be extended to 3000mm.

LD-60/LD-G3

airless spray gun features robust durability, ergonomic comfort, and high transfer efficiency for paint conservation. Engineered for heavy industry applications, it delivers superior atomization quality and is ideal for anti-corrosion coating spraying. Its ergonomic design ensures flexibility under extreme conditions, making it the perfect choice for handling high-solid-content coatings and high-zinc primer applications.

LD-QAP1/LD-QMP1

air-blown spray gun saves paint while protecting the environment, offering unparalleled atomization quality and ergonomic performance. It achieves exceptional finishing results and delivers rapid cost recovery. With all-stainless steel paint channels, it accommodates both solvent-based and water-based coatings. Primarily used in high-precision surface treatments for automotive bodies, locomotives, bullet trains, aircraft, steel structures, and wooden furniture through automated production line spraying.

Example of nozzle specifications: The code 17B2517 indicates a flow rate of 1.7L/min, with 'B' denoting a B-type nozzle design. The '25' parameter specifies that when the nozzle is positioned 300mm from the target surface, the spray coverage area spans 250-300mm.

Experimental material: water. Experimental pressure: 10 MPa

Spray hose

High-pressure hoses are essential components in various high-pressure fluid transportation applications, where their reliability and durability are critical for efficient and safe equipment operation. These hoses are precision-engineered to withstand extreme pressure and temperature conditions, ensuring stable fluid delivery. High-quality materials provide wear resistance and corrosion resistance, extending service life and reducing maintenance costs, forming the foundation for safe and efficient fluid transportation.

High safety: Capable of withstanding high-pressure environments to prevent leaks and ruptures.

High durability: Resistant to wear and corrosion, suitable for harsh working conditions.

Versatility: Compatible with various fluids and gases, supporting a wide range of industrial applications.

Flexible operation: Combines strength with flexibility for easier installation and operation. Technical specifications: High-pressure hose:1/4 inch × 15 meters

feed port:3/4 inch

internal thread connector discharge port:1/4 inch

external thread connector maximum pressure:60MPa

Material:nylon, PVC material

Extension pole

Applications and Features: This solution meets the spray application requirements for most interior and exterior building walls, with extended spray range. The design ensures the spray gun nozzle remains perpendicular to the wall surface, guaranteeing consistent spray quality. This innovative design effectively minimizes paint waste from over-spraying, enhances spray efficiency and cost-effectiveness, and ensures each application achieves optimal results.

Dimension	Diameter	Work pressure		Burst pressure
inch	mm	Bar	psi	Bar	psi
1/4"	6.3x13.3	400	5800	1450	21000
1/4"	6.3x12.7	340	4930	1360	19270
5/16"	7.9×14.9	380	5500	1300	18850
5/16"	7.9×15.0	310	4495	1240	17980
3/8"	9.5×18.0	250	3625	1000	14500
1/2"	12.7x21.6	220	3190	880	12760

Powder Electrostatic Spray Gun

Electrical Parameters of LD A-580 Control Unit:
Rated Voltage / Connected Load	200-240 VAC
Frequency	50～60HZ
Rated Output Voltage	12 V
Rated Output Current	1 A
Protection Class	IP 54
Operating Temperature	0℃~40℃
Maximum Operating Temperature	85℃(+185℃F)
Compressed Air Parameters:
Compressed Air Inlet Port (on Control Unit): Right-angle channel, 8 mm
Compressed Air Inlet Port (on Filter Unit): G1/4" - Internal Thread
Maximum Inlet Pressure: 10 bar / 145 psi
Minimum Inlet Pressure (during Controller Operation): 6 bar / 87 psi
Maximum Water Content: 1.3 g/m³
Maximum Oil Content: 0.1 mg/m³

Product Features

1. Adopts memory digital control, which can store up to 250 sets of different spraying control parameters.
2. Rewritable spraying parameter settings ensure uniform spraying effect and save powder.
3. Digital valve control technology guarantees high-precision powder output.
4. All spraying parameters can be easily controlled via touch-sensitive digital control buttons.
5. Modular design facilitates maintenance and upkeep.

Industry Application

Package Detail

FAQ About Robot

1.Question: [SAFETY] I want to ensure the industrial robot I purchase complies with industry standards and regulations. What certifications does it have?

Answer: This industrial robot has passed strict industry certifications and standards, including ISO quality management system certification and CE certification and ATEX for painting robots, ensuring its quality and safety.

2.Question:[Technical support] I need an industrial robot with reliable technical support and training services. Do you offer support in this area?

Answer: Yes, we provide comprehensive technical support and training services, including operation training, maintenance training, and on-site support to ensure you can fully utilize the performance and capabilities of the industrial robot.

3.Question:[Material download ]Where can I obtain relevant information about robots, including parameter manuals, mathematical models, and so on

Answer: https://www.efort.com.cn/en/index.php/service/downservice.html

4.Question:【Warranty】how about your warranty

Answer :Yes, our products come with a certain period of warranty. The specific warranty period and coverage may vary depending on the product model and region. Please provide your location and the product model you are interested in to obtain more accurate information. In general, the warranty period is 12 months.

5.Question:【Payment】how about the payment if we place orders to you .

Answer :We accept multiple payment methods, including but not limited to TT, L/C, etc. You can choose the payment method that is convenient for you.

6.Question:[Customization] Do you provide any possible customized service .

Answer: Yes, we provide customization services within a certain range, such as color customization, boot UI customization, LOLO customization, etc., according to the specific requirements of customers. Please provide your customization requirements, and we will do our best to meet your needs.

7.Question: [maintenance] What are the maintenance costs for the industrial robot? I want to understand the long-term operating costs.

Answer: The maintenance costs for this industrial robot are very low. We provide maintenance services including regular inspections, preventive maintenance, and quick-response technical support to minimize your operating costs.

8.Question: [Easy to use ] I expect efficient programming capabilities in the industrial robot for quick deployment and adjustments on the production line. Does it offer efficient programming?

Answer: This industrial robot comes with user-friendly programming interfaces and advanced programming capabilities, allowing for quick and easy deployment and adjustments on the production line.

9.Question: [Reliability] How reliable is the industrial robot? I need a stable and dependable machine to ensure production continuity.

Answer: This industrial robot undergoes rigorous quality control and testing, ensuring excellent reliability and stability. It is built with advanced technology and high-quality materials to ensure continuous production.

Contact

Fengor_Hu (Mr)
Executive Director
MP:+86-15665538866 (whatsapp)

MP: +86-18356576525(wechat )
Skype: hufengguang1980

Email: hufengguang@techflyrobot.com

Anhui Techfly robotics technology Co., Ltd

www.techflyrobot.com

4th Floor,No.39 Wei Si Road,Jiujiang Economic Development Zone, Jiujiang District, Wuhu City, Anhui Province

ANHUI TECHFLY ROBOTICS TECHNOLOGY CO., LTD
